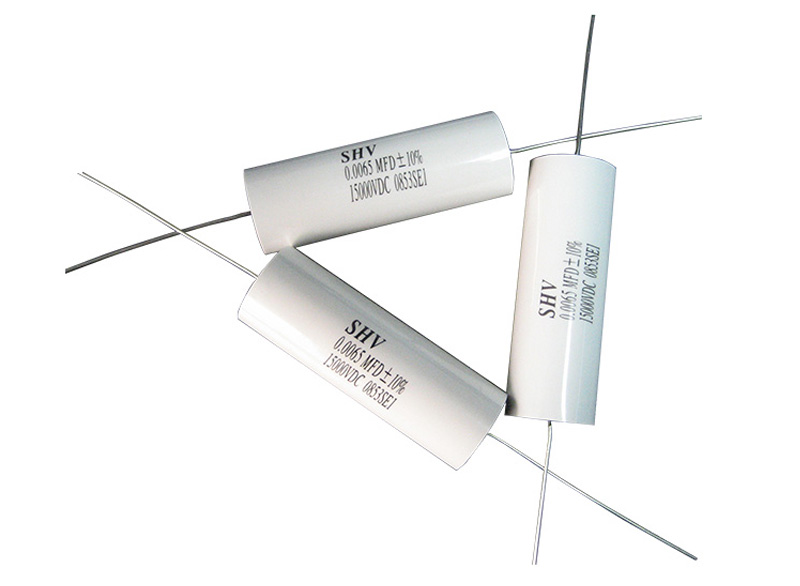

Polyester Dielectric Capacitor

Features:

High Reliability

Non-inductive construction

Small Size

Self-Healing

Low ESL

OEM customization available

Application:

X-ray Equipment, High Voltage Power Supply, Multiplier, Electrical System

Electrical Characteristics

Rated Voltage: 2KV-30KV (DC) 1KV-6KV(AC)

Dissipation Factor: ≤0.01(20℃ 1KHZ)

Insulation Resistance: ≥50000MΩ ( 20℃, 2min,500V )

Test Voltage: 120% ~ 150% of rated voltage for 30 seconds.

Temperature: -55℃ to +85℃ at full rated voltage.

Tolerance: ±2% ±5% ±10%

Physical Characteristics

Construction: Non-inductive wound metallized polyester.

Case: Metallized polyester wrap and epoxy end fill.

Case style: Round. Oval available upon request.

Lead Material: Axial solder coated or tinned solid wire, AWG as specified in table.

Lead Strength: Capable of withstanding a five pound pull force on lead axils.

Selection Table:

Capacitance	2KV			4KV			6KV			8KV			10KV			12KV			15KV			20KV
Capacitance	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead	L (mm)	D (mm)	Lead
uF	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG	Max	Max	AWG
0.001	30	6	22	29	7	22	37	7.5	22	45	8	22	50	9	22	60	8	22	72	8	22	72	11	20
0.0015	30	6	22	29	7.5	22	37	8	22	45	9	22	50	10	22	60	9	22	72	9	22	72	13	20
0.0022	30	6	22	29	8	22	37	9	22	45	10	22	50	11	22	60	10	22	72	11	22	72	15	20
0.0033	30	6	22	29	9	22	37	11	22	45	12	22	50	12	22	60	12	22	72	12	22	72	17	20
0.0047	30	6.5	22	29	10	22	37	12	22	45	14	22	50	14	22	60	13	22	72	14	22	72	20	20
0.0056	30	7	22	29	11	22	37	13	22	45	15	22	50	15	22	60	14	22	72	15	22	72	21	20
0.0068	30	7	22	29	12	22	37	14	22	45	16	22	50	16	20	60	15	20	72	16	20	72	23	20
0.0082	30	7	22	29	13	22	37	15	22	45	17	22	50	18	20	60	16	20	72	18	20	72	25	20
0.01	30	8	22	29	14	22	37	16	22	45	18	22	50	19	20	60	18	20	72	19	20	72	28	20
0.015	30	9	22	29	16	22	37	19	22	45	22	22	50	23	20	60	21	20	72	23	20	72	33	20
0.022	30	10	20	29	19	20	37	23	20	45	26	20	50	27	20	60	25	20	72	27	20	72	40	20
0.033	30	11	20	36	16	20	49	19	20	62	21	20	81	24	20	71	29	20	72	33	20	72	48	20
0.047	30	12	20	36	18	20	49	22	20	62	25	20	81	28	20	71	34	20	82	36	20	92	46	20
0.056	30	13	20	36	20	20	49	24	20	62	27	20	81	30	20	71	37	20	82	40	20	92	50	20
0.068	30	14	20	36	22	20	49	26	20	62	30	20	81	33	20	71	40	20	82	43	20	92	55	20
0.082	30	15	20	36	23	20	49	28	20	62	32	20	81	36	20	71	44	20	82	47	20	113	45	20
0.1	30	16	20	36	26	20	49	31	20	62	35	20	81	39	20	100	37	20	117	40	20	113	50	20
0.15	46	15	20	48	17	20	85	30	20	81	40	20	81	47	20	100	45	20	117	49	20	113	60	20
0.22	46	17	20	48	20	20	85	35	20	81	48	20	100	53	20	100	53	20	117	58	20	-	-	-
0.33	46	20	20	48	24	20	85	42	20	81	58	20	100	65	20	100	65	20	-	-	-	-	-	-
0.47	46	23	20	48	28	20	85	46	20	81	69	20	-	-	-	-	-	-	-	-	-	-	-	-
0.56	46	24	20	48	30	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
0.68	46	27	20	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
